Message Types View

The Message Types view allows you to define the various message types that can be sent to the operators. In addition to the Message Code, you can also enter the detailed content, such as the description or a solution, that will be displayed when the message is displayed on the HMI.

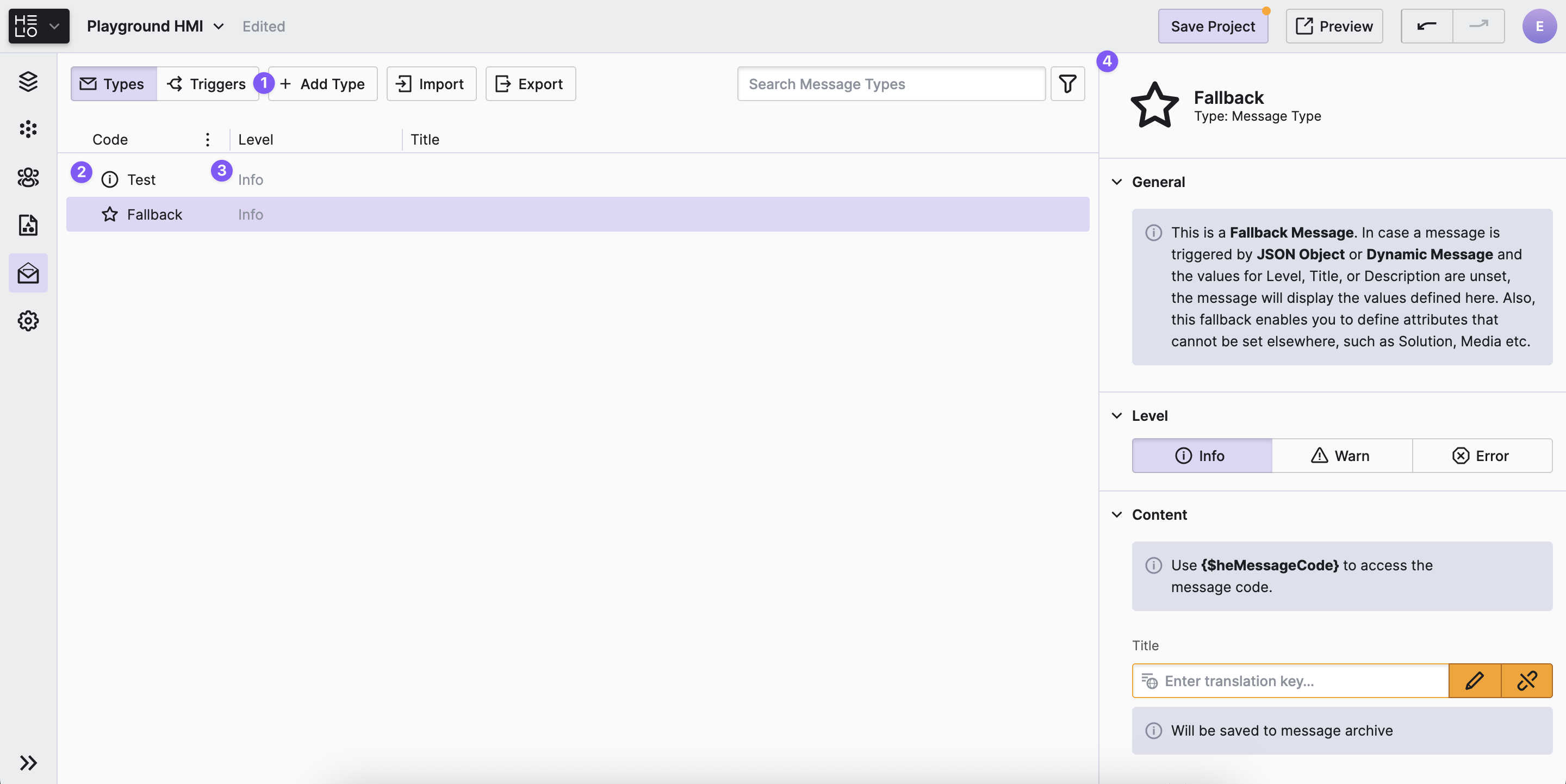

Anatomy​

  1. Use the Add button to create new messages types.

  2. Each type is defined by a unique Message Code.

  3. As well as a Message Level.

  4. The properties let you define the content of the message.

Learn More​

Check out the Messaging & Alarming guide to learn all the details about messaging.
