Project Settings

Project Settings is the central location for general settings that have an effect on your entire project, across the boundaries of the different views.

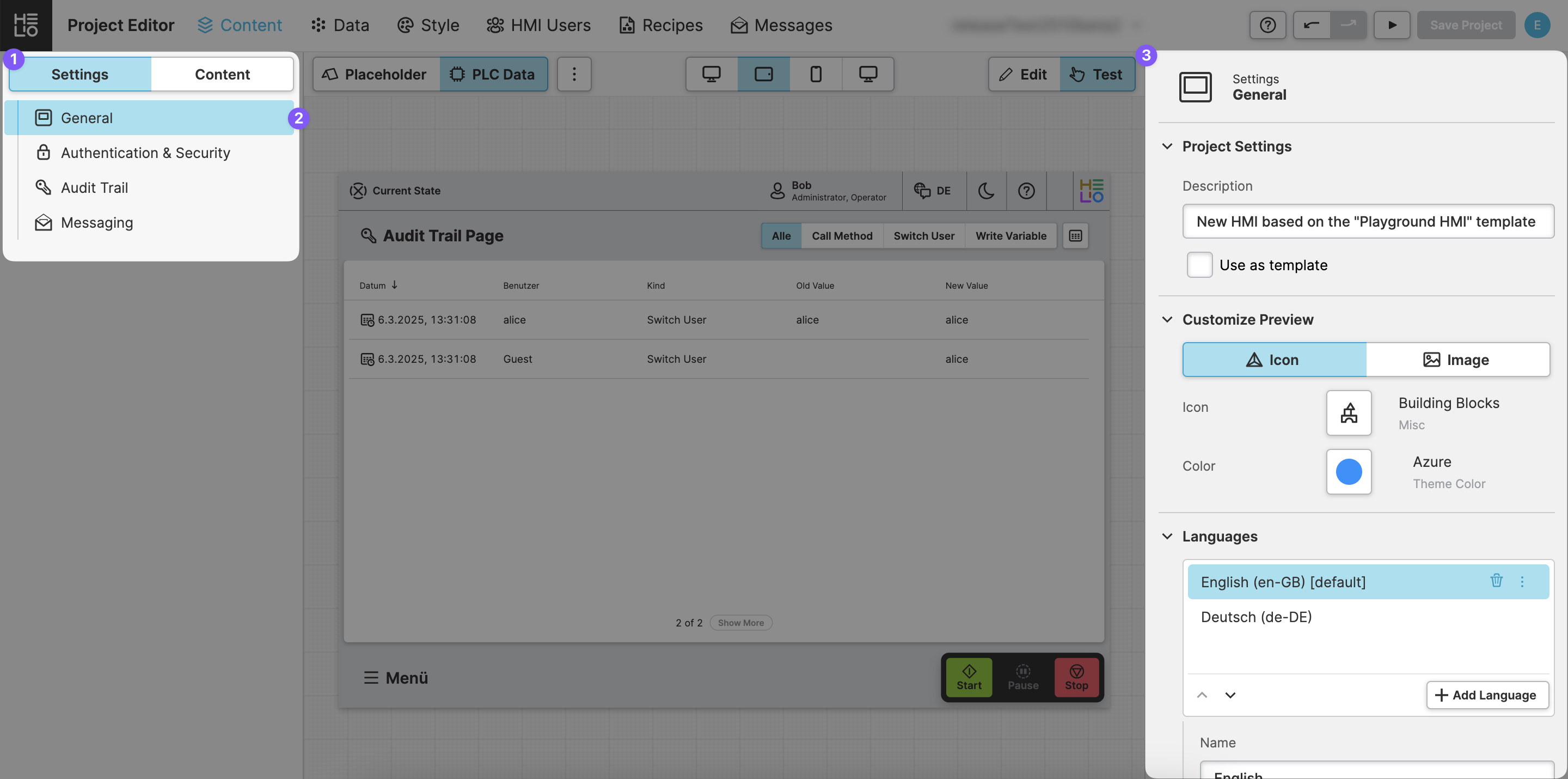

Anatomy

1. The Settings Tab that brings up the Project Settings within the Content View.

2. The different setting sections

3. The Properties Panel displays the detailed settings for the currently selected setting section.

---

General

Project Settings

Description

This description will be shown on the Welcome Page, which helps your fellow team members get a handle on what this project is all about.

Customize Preview

Choose an icon and color that will be shown on the Welcome Page. This is especially helpful when you're juggling multiple projects at once. It makes it easy to quickly find the one you're currently working on.

Languages

Tell HELIO which languages you want to translate this project into. Also, be sure to set a default language that will be used when operators have not yet set a preference.

Devices

This group is where you can define the generic or specific devices that the HMI will be running on. You will be able to choose them within the preview to see how the current page will look on different output devices.

Unit Conversions

Define the unit conversions that will be available to operators in this device. For each conversion you define a source and target unit. HELIO will also suggest common conversions for you (e.g. ft → mt) so you don't have to care about the math behind them.

Elements

Unit Switch
