Properties Panel

The Properties Panel allows you to adjust all the properties of the Element that is currently selected in the HMI Content Tree and the HMI Preview Panel.

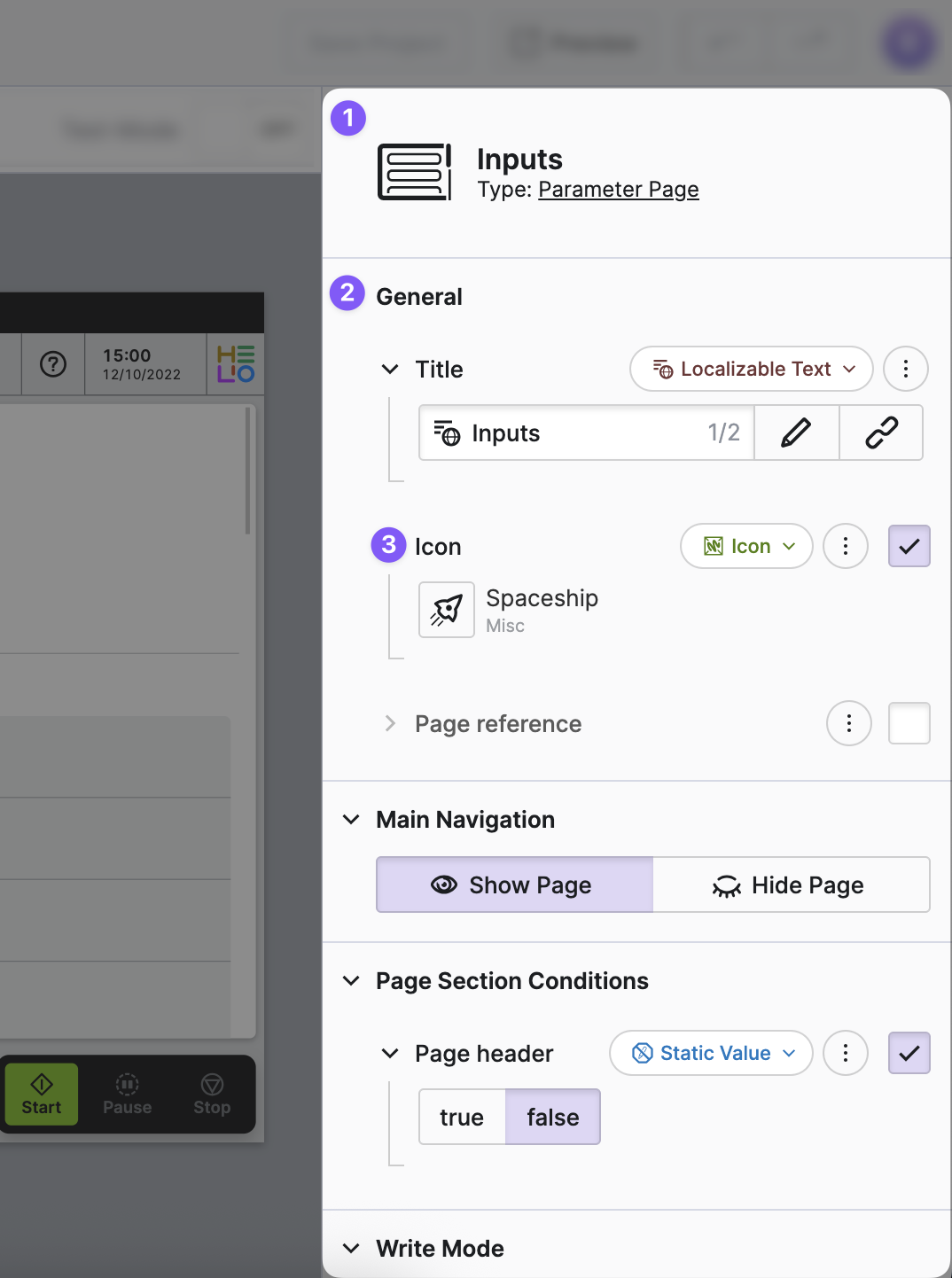

Anatomy

1. Header displaying the type and name of the currently selected Element.

2. A Property Group (in this case General) is a collection of related properties that can be collapsed.

3. A property of the currently selected Element. In this case it is the Icon property of the page.
