Display Conditions
Every Page and every Element in HELIO shares a truly subtle, but very powerful, superpower: the Display Condition. It lets you control whether something is visible to your operators or if it stays out of the way.
Display conditions can be combined with many Dynamic Properties in order to make your HMI react intelligently to its context, without adding complexity. This opens up a lot of possibilities: Show advanced settings only to logged-in administrators. Hide elements when screen space is limited. Reveal information exactly when and where it's needed and nowhere else.
In short: display conditions help you build HMIs that are not just functional, but aware, focused, and user-friendly.
Get Started
To watch this embedded YouTube video, you need to accept the marketing cookies.
Karlotta will walk you through the display conditions, step-by-step. Take a look!
Use Cases
Let's take a look at some typical use cases for that to get an idea of what's possible.
Restrict Pages to Specific Users
The most common use case: using conditions to tailor your HMI to specific user groups.
-
Activate the display condition for the page
-
Select Restrict To Users
-
Only allow signed-in administrators
Learn more with the following resources:

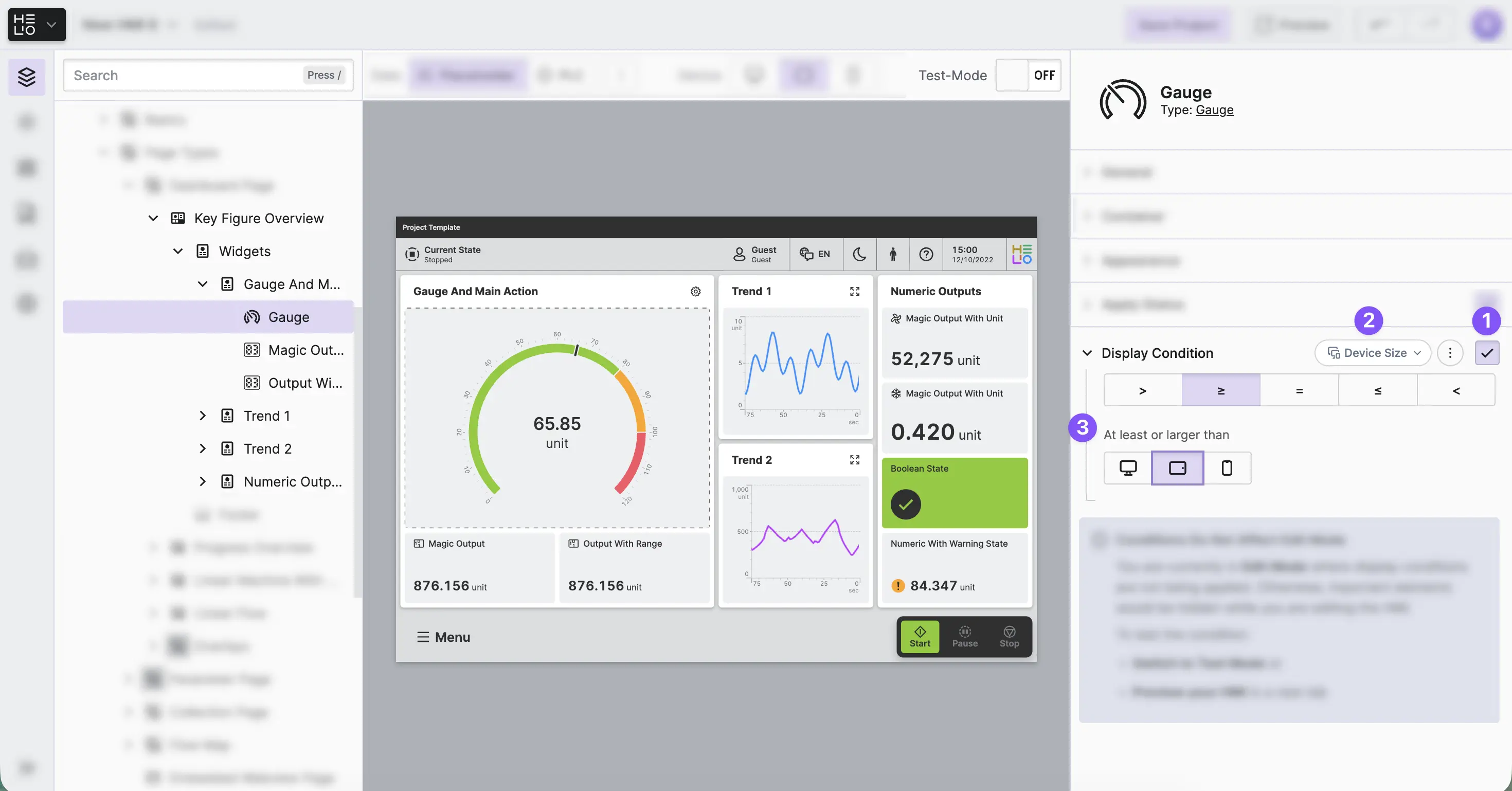

Display Elements Only on Particular Device Sizes
A method to show complex elements only on larger devices that is often overlooked. Can also be used in reverse, for example, to hide data-intensive elements on smaller screens.
-
Activate the condition for an element
-
Select Device Size
-
Choose at least or lager than iPad Landscape.
Learn more with the following resources:

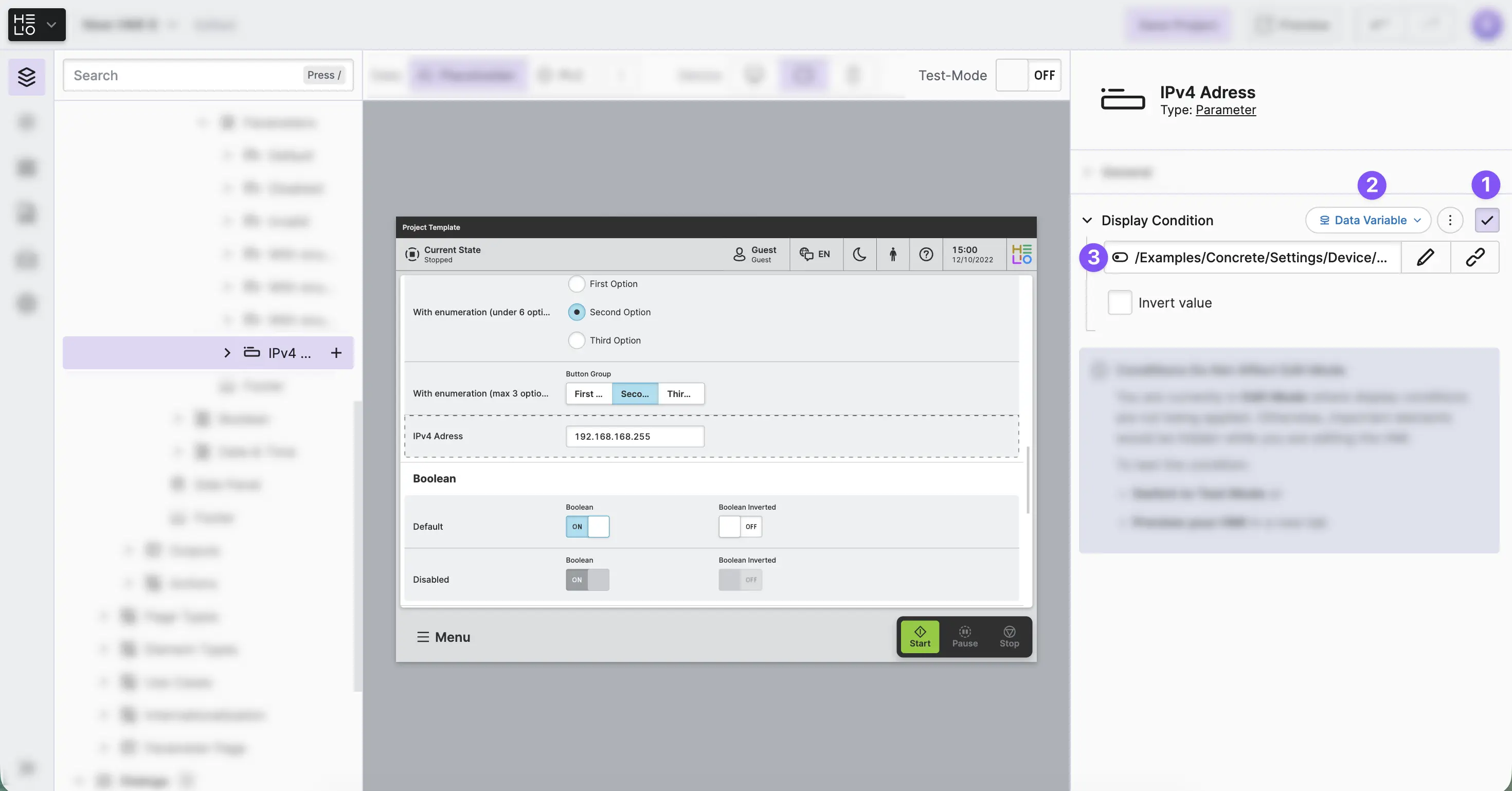

Hide Elements or Pages Using Your PLC
Let your PLC control which pages or elements to show and hide. Useful for tailoring HMIs to different machine configurations.
-
Activate the display condition for the element
-
Choose a boolean data variable
Learn more with the following resources:
