Flow Map Module

The Flow Map Module is a component of the Flow Map Page. It can be positioned on a page by setting its x and y coordinates. You can establish connections between modules by defining one or more outlets for a module that can be linked to other modules on the page.

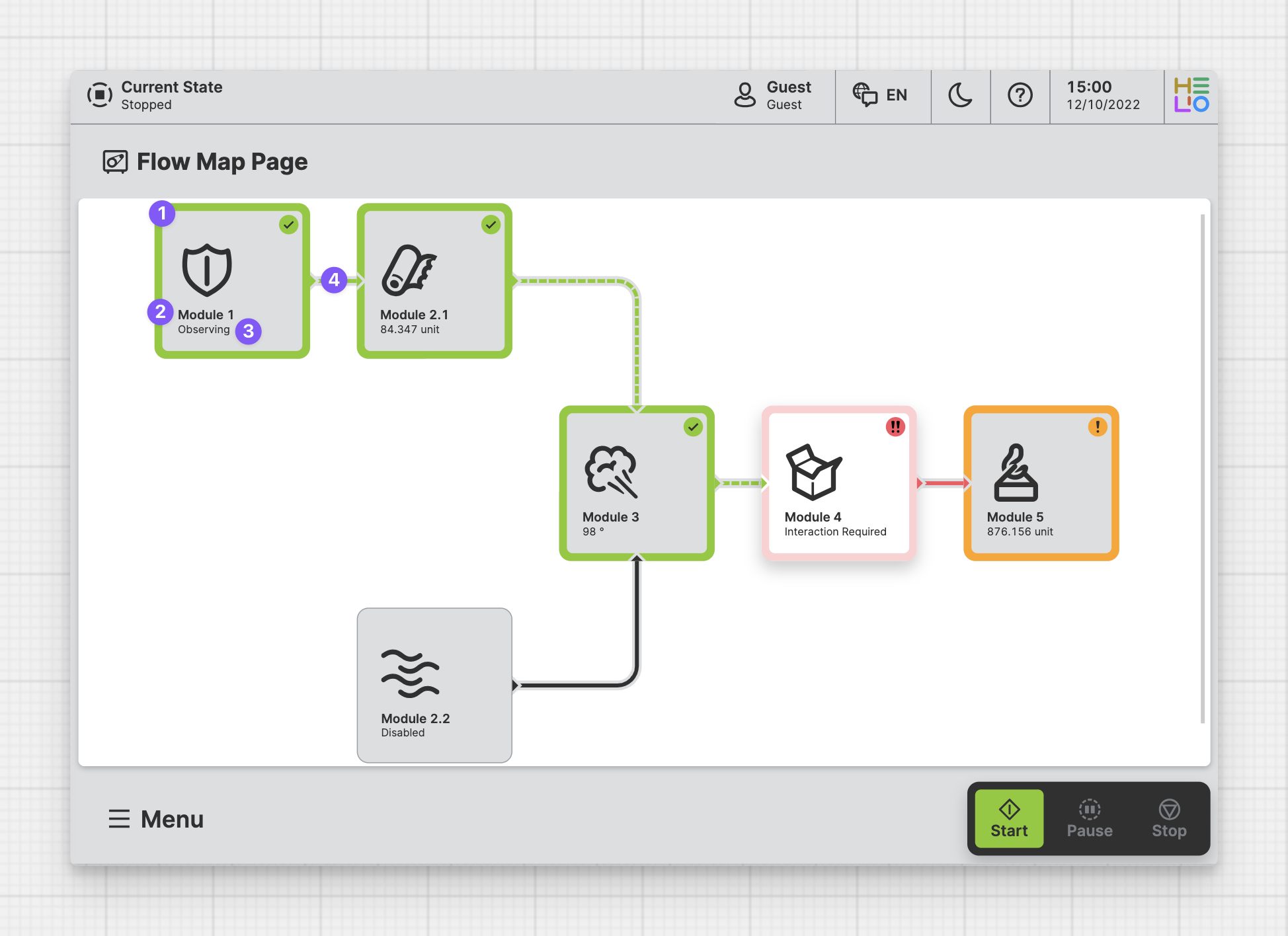

Anatomy​

  1. Module

  2. Label

  3. Description

  4. Outlet

Properties​

General​

Label

Choose the headline that will be displayed within the module.

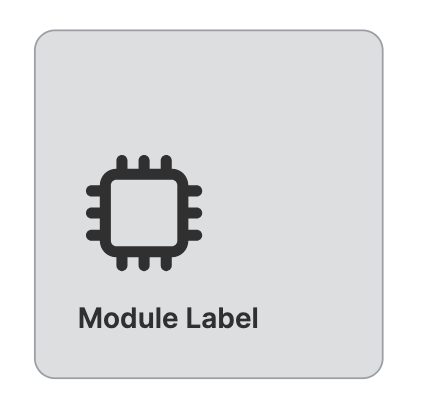

Example Module with Label “Module 1”

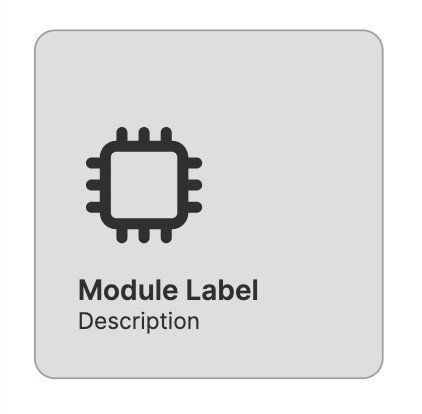

Description

Choose the line that will be displayed at the bottom of the module. It can also be used to highlight the most important value that a module provides.

Example Module with Info

Is Blinking

In order to draw the attention of operators to a specific module you can set this value to true an make the module display a subtle animation.

Note: This setting only has a visual effect if the module has a status set and that status is not “Neutral”.

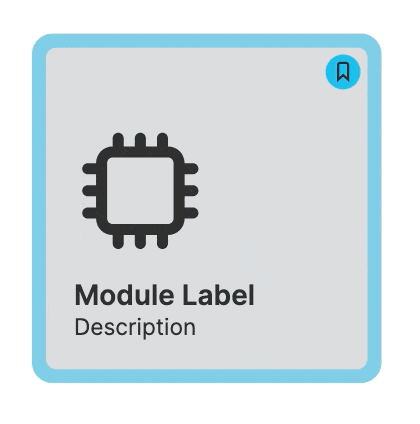

Example Blinking Module

On click

Choose the action that is triggered once the user has clicked or touched and then released the pointer over the Module.

Is diabled

Will display the module as inactive and prevent operators from triggering the action of this module.

Position

Use the arrow buttons or the X and Y settings to position each module.

Display​

Icon / Image

Choose wether you want to display an Icon or an Image on this module.

With Icon

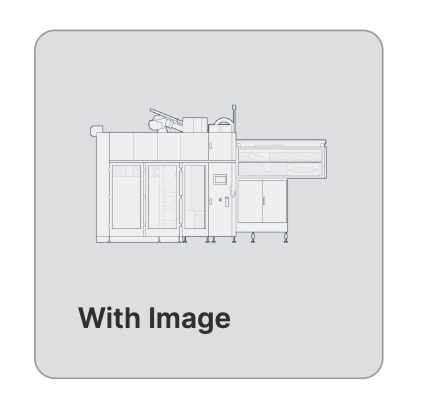

With Image

Apply Status​

From Value with Ranges

Use this option, if the variable linked to Value provides status information. This will allow you to automatically apply the status from Value to indicate the quality of the value as either Good, Warning, Critical or Accent.

Learn more with the following resources:

Manually

Determine manually which status should be displayed by the element.
-> For more information: visit Status.

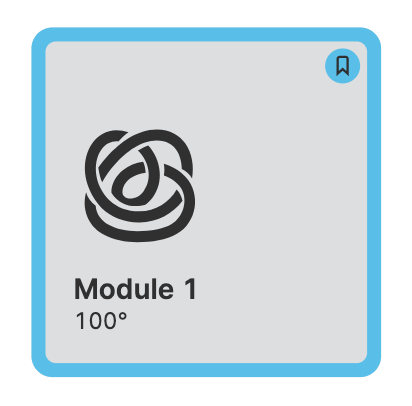

Status "Noteworthy"

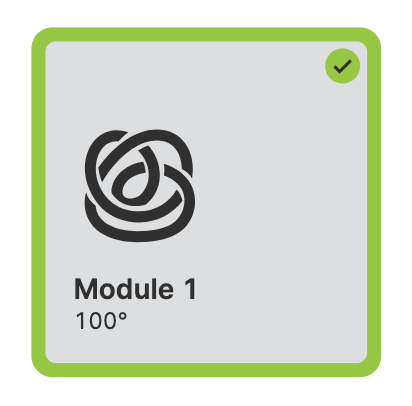

Status "Good"
Status "Neutral"

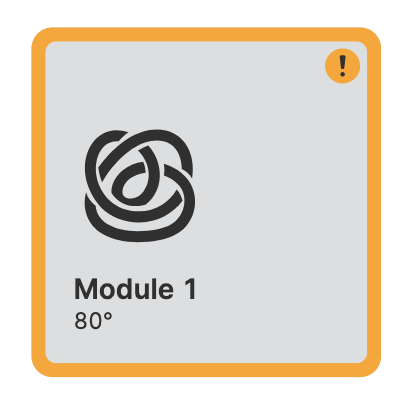

Status "Warning"

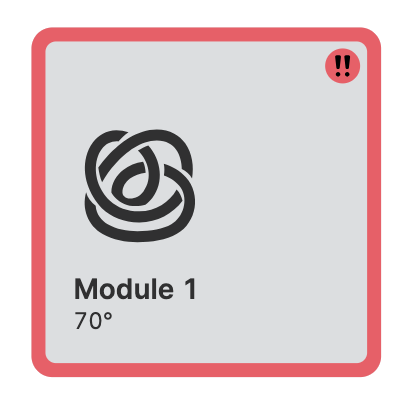

Status "Critical"

Text Alignment

Select the alignment of the text within the module.

Bottom Left
Bottom Center
Top Left
Top Center
Center Center

Outlets​

What is an outlet?

With outlets, you can define connections between your modules. You can have none, one, or multiple outlets. However, it is important to note that having more than 3 outlets will make your Flow Map a complex visualization that is difficult to understand.

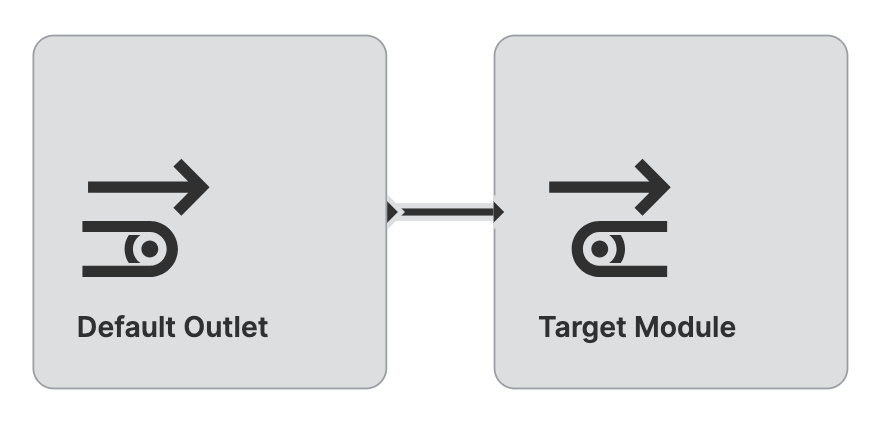

With Default Outlet

Status

You can also assign a status to each outlet to highlight specific connections for the operators' attention.

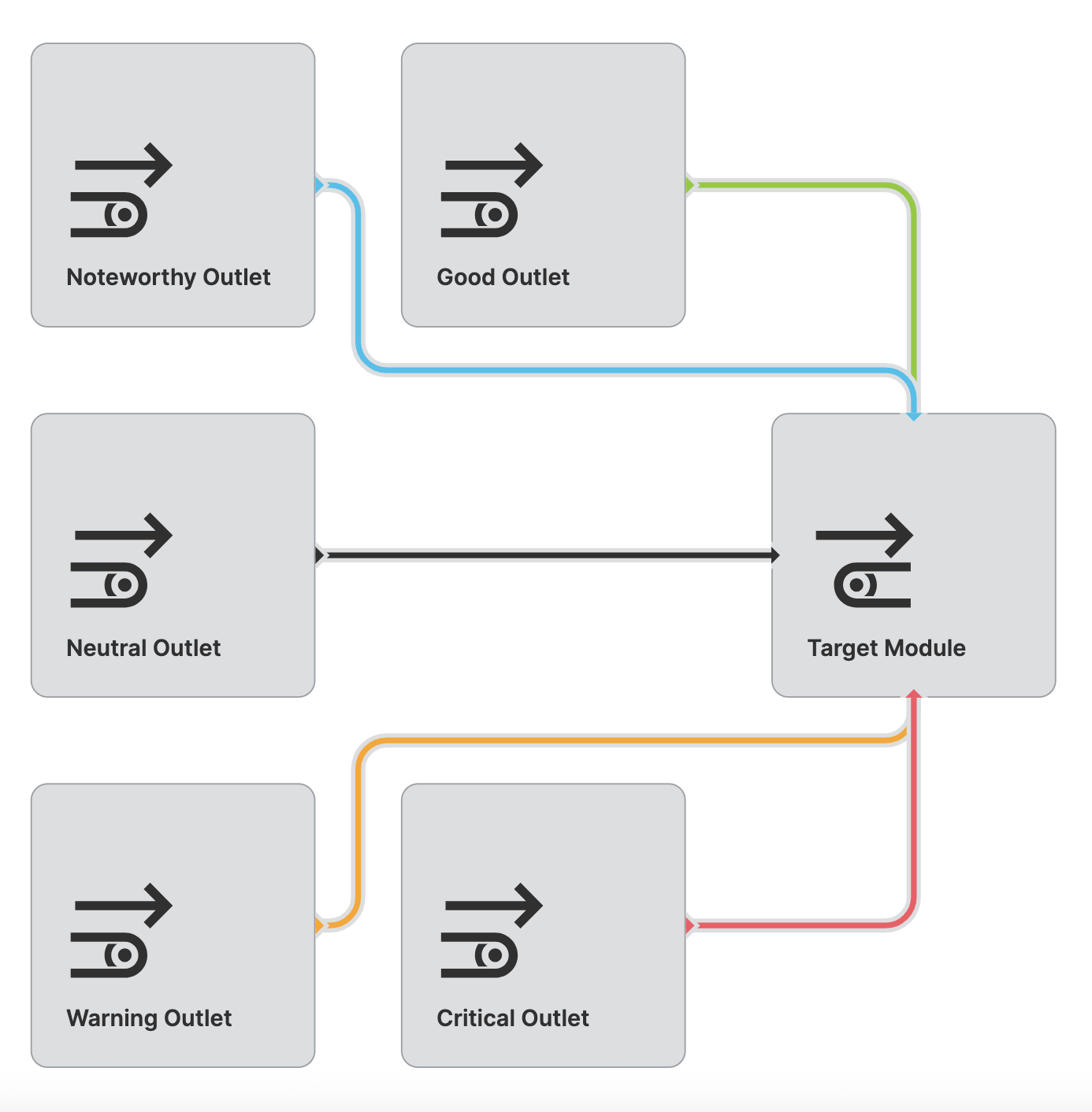

With Outlet Status

Is Active

Finally, you can set an outlet to Is active to indicate progress or activity.

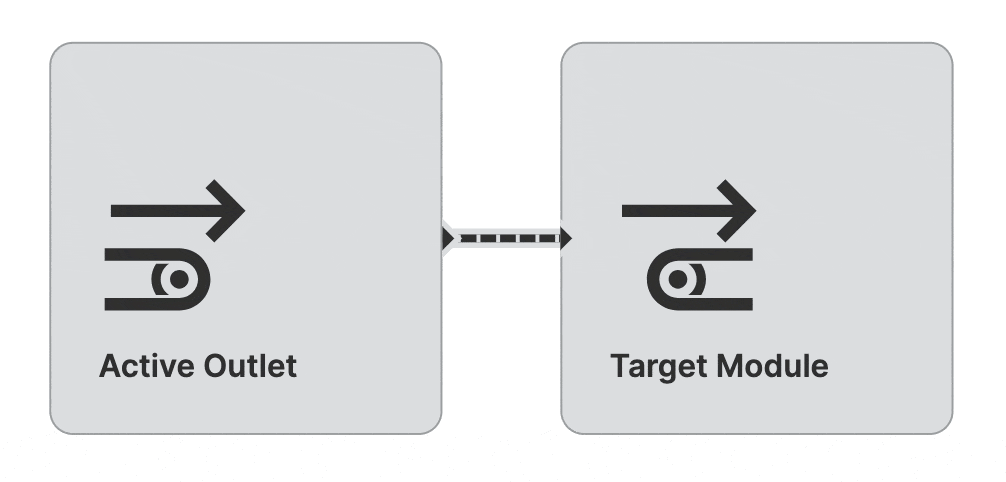

With Active Outlet
Display Condition

Condition

Determines whether an element or page should be visible or hidden to the current user. The condition can be set to different types of Dynamic Property – as long as the the type returns true or false you're good to go.
