Gauge

A Gauge is a dial-shaped visualization well-suited for values that change frequently. Color-coded zones along the track show safe, warning, and critical ranges at a glance — so even a rapidly dithering value stays readable, and operators immediately see when something enters a critical area. Unlike the Radial Bars, which colors the whole bar to reflect the current status, the Gauge color-codes the track itself to provide context across the full range.

Properties​

General​

Data

The data source for this Gauge. Connect a numeric Data Variable (Dynamic Property).

Requirements When Using a Data Variable (Dynamic Property)

  • Minimum and Maximum Values
    The dial range is determined by the minimum and maximum of the linked variable.
  • Use the Ranges property of the variable to color-code zones along the track.

Setpoint

An optional target value displayed as a marker on the dial. Connect a numeric Data Variable (Dynamic Property).

Name

The name for this gauge. It will be displayed in the center of the gauge.

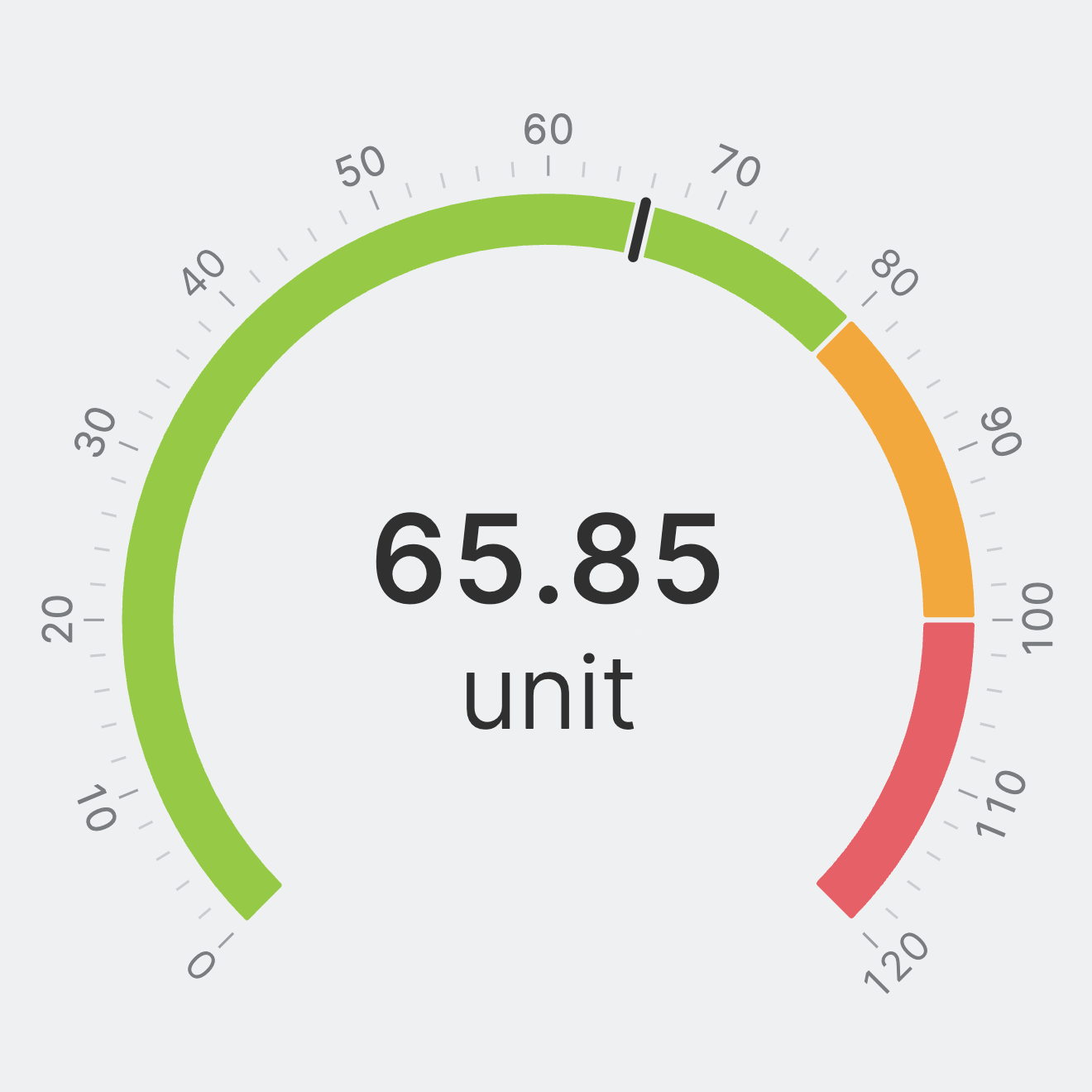

Gauge with Data

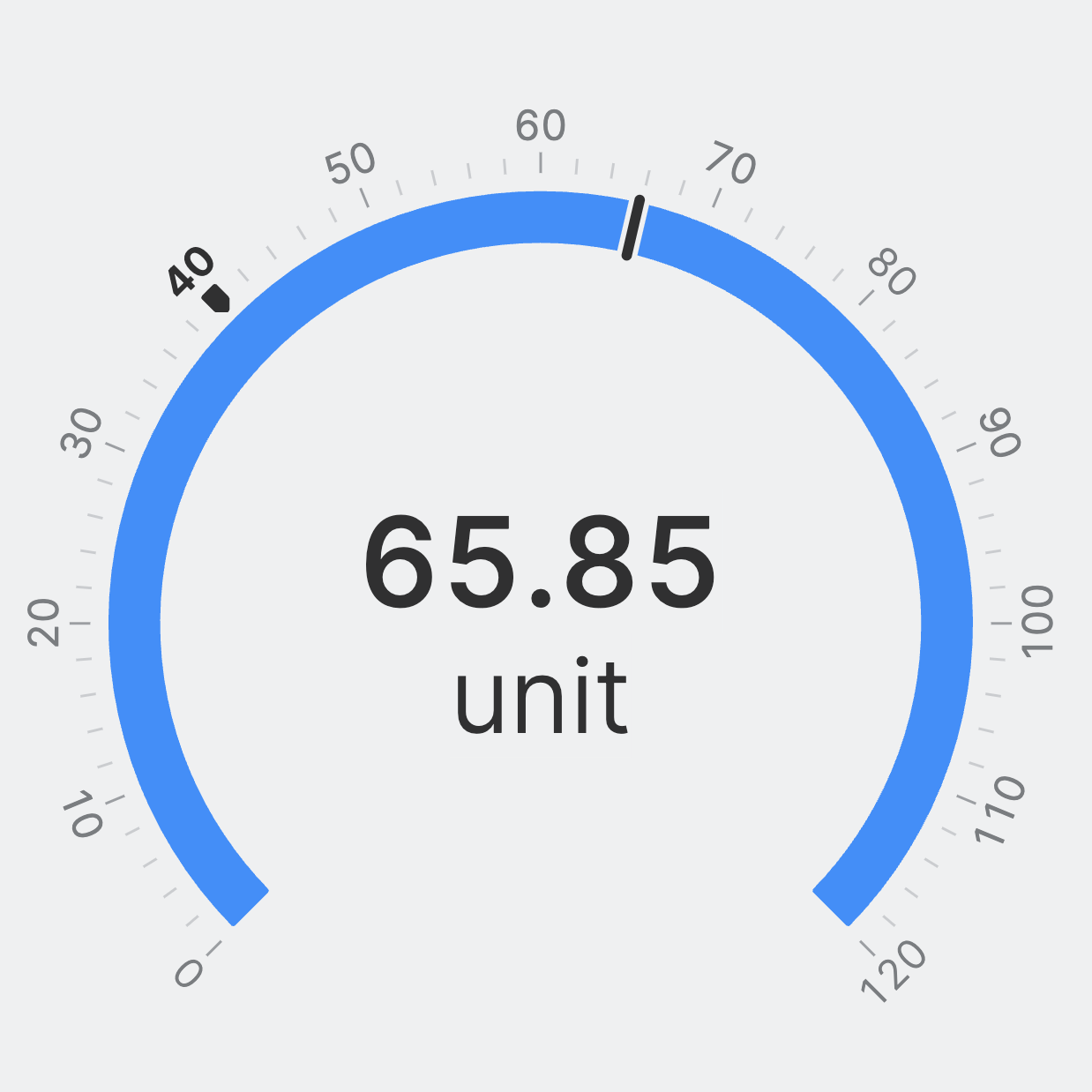

Gauge with Setpoint

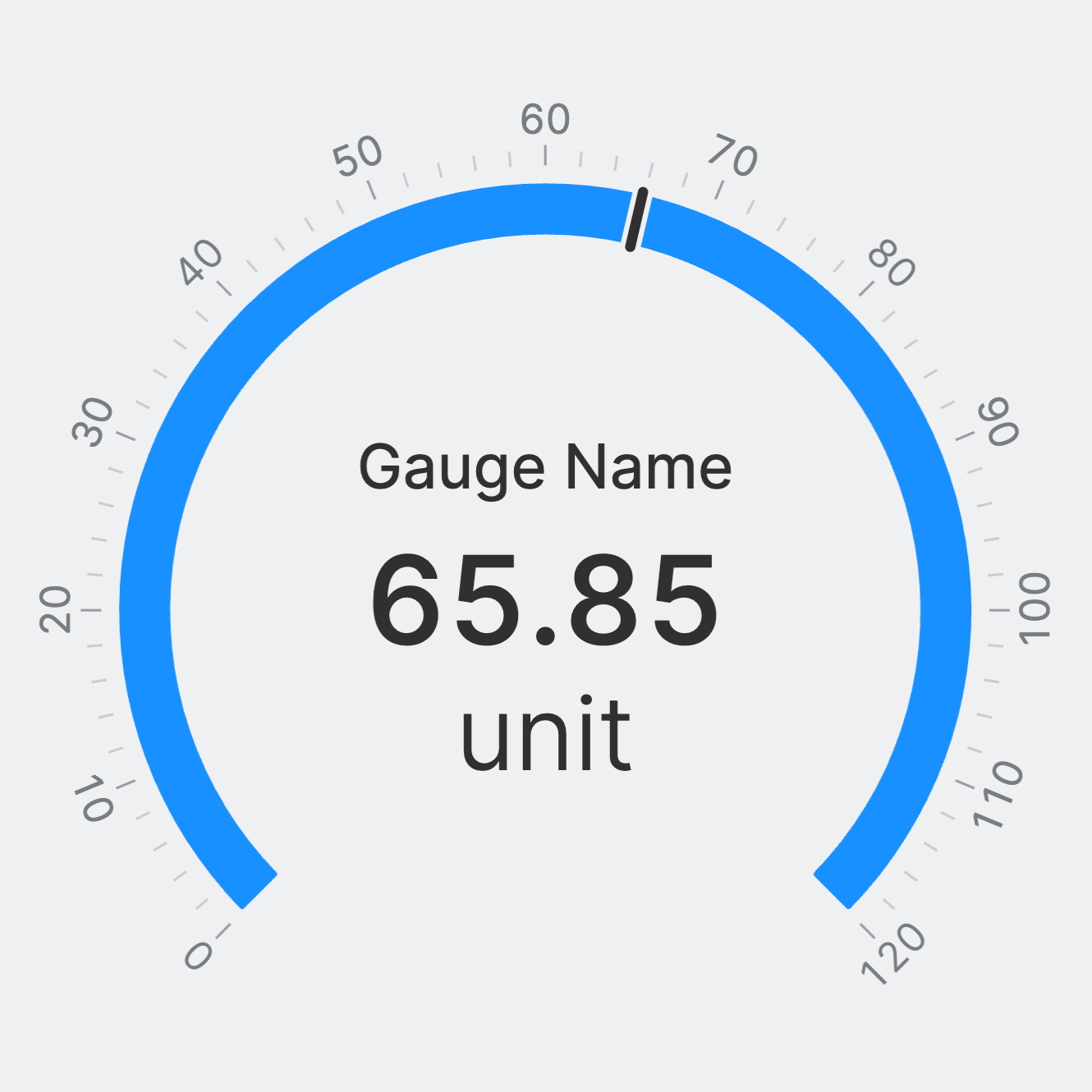

Gauge with Name

Container​

Icon

This icon will be displayed next to the element's label on pages that support it, like the Dashboard Page. An Element can make use of the icon to:

  • Provide more context to add meaning
  • Improve recognition and discoverability, especially on larger pages

Label

Provides context and information to operators, guiding them and helping them understand the value of this particular element. A good label instills confidence in operators when making adjustments.

Description

Will be displayed underneath the element. This description provides additional guidance or instructions for operators manipulating the element. It expands on the label by offering supporting details and clarifying what the element represents or how it behaves. It provides an opportunity to offer more detailed context regarding the potential impact of changes or further instructions on the desired input format.

Ticks​

Control the number of ticks that the gauge will display.

Auto

HELIO will calculate a fitting number of ticks for you.

Density

Select the number of ticks yourself by setting a density. Choose between low, medium and high.

Interval

Precisely select the number of ticks yourself by setting intervals. Choose how often a tick should appear and how often a label should appear.

Segments

Precisely select the number of ticks yourself by setting segments. Choose how many ticks should appear and how often a label should appear.

Apply Status​

From Value with Ranges

Use this option, if the variable linked to Value provides status information. This will allow you to automatically apply the status from Value to indicate the quality of the value as either Good, Warning, Critical or Accent.

Learn more with the following resources:

Manually

Determine manually which status should be displayed by the element.
-> For more information: visit Status.

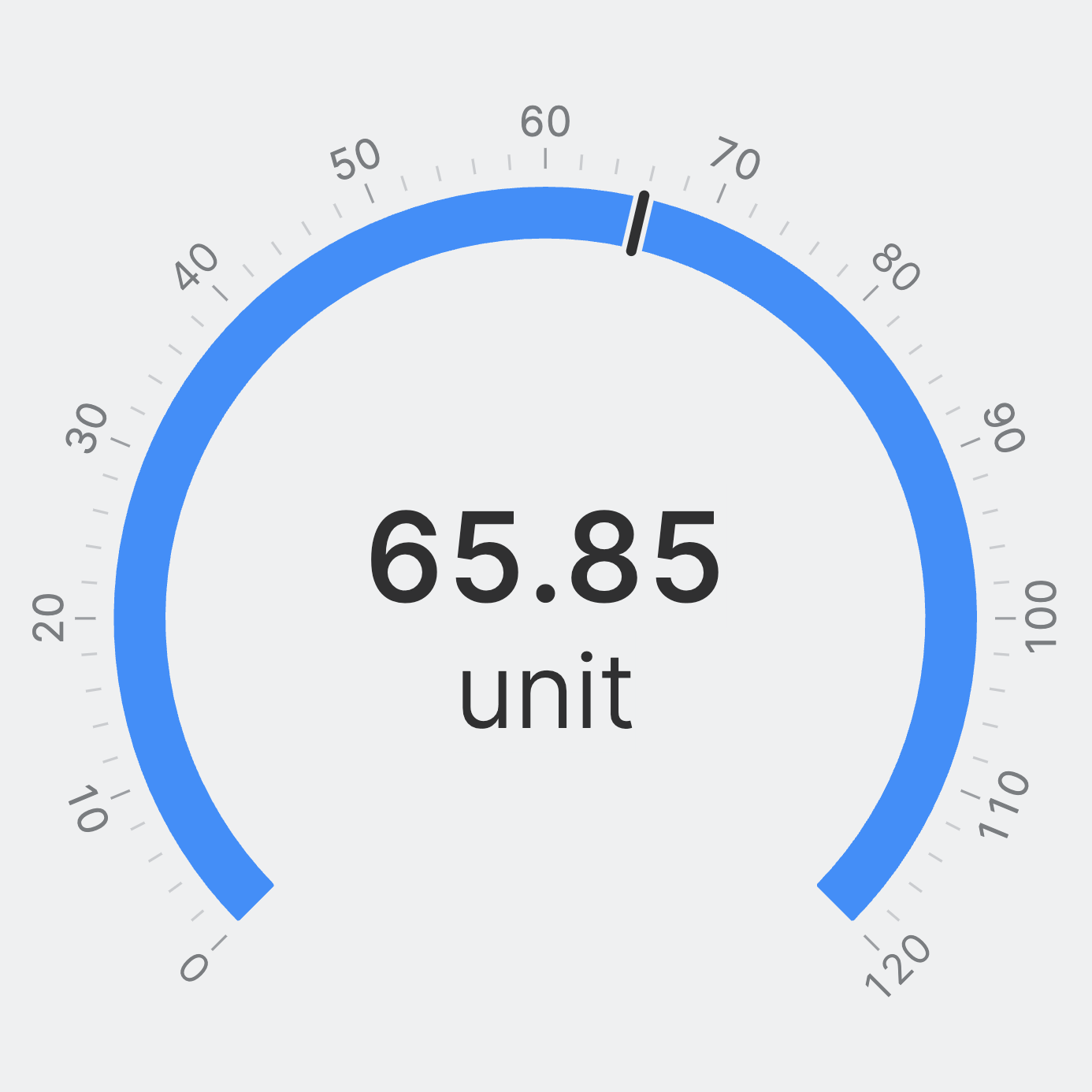

Gauge without Status
Gauge with Status
Display Condition

Condition

The Display Condition controls the visibility of an element or page for the current user. The condition can be set to different types of Dynamic Property – as long as the the type returns true or false you're good to go.
